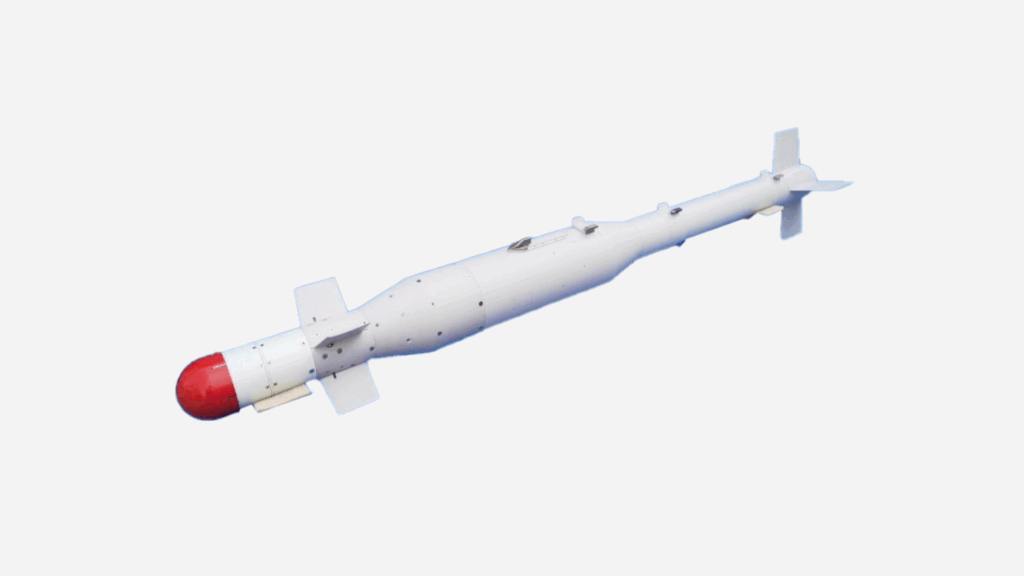

TFM-IMPI 01 Missile
TFM-IMPI 01 missile is an Air-to-Ground weapon which is applied to UA V (Unmanned Aerial Vehicle).
It is used to strike targets such as tank，light armored vehicle, armed personnel etc. It has advantages of light weight, small dimension, and high precision.
Specifications
- Missile weight 22kg
- Warhead weight 8kg
- Warhead type: Tandem armor-penetrating and fragmentation-blast multifunction warhead
- Warhead power
- Penetrating 320mm/68° homogeneous armor with reactive-armor PBFY-1, penetration ratio greater than 80%
- Effective fragment radius to person:10m
- Fuse type Contact fuze
- Launch mode Rail launch
- Attack targets Tank，light armored vehicle, armed personnel etc， moving target at a speed no more than 54km/h.
- Allowable launch heigh （relative height）500m~7000m
- Max range 9km
- Hit accuracy CEP≤1m
